FX-AUDIO FX1602S TDA7498E high-power digital amplifier BC-05 Bluetooth receiver with TPA6120 Headphone Amplifier 160W*2

Product Code : FX-AUDIO FX1602S

Original Price : US$

My Price : US$ 89.99

Product Weight : 1.100KG

Description & Specs
Item specifics
  • Brand Name: NF J&FXAUDIO
  • DSD (Direct Stream Digital): No
  • Model Number: FX1602S
  • Operational Amplifier Chips Model: TPA6120
  • Package: Yes
  • WIFI: No
  • Channels: 2 (2.0)
  • Type: Professional Amplifier
  • Bluetooth: No
  • Body Material: Aluminum
  • Input Type: LINE IN (AUDIO IN)
  • Built-in Battery: No
  • Output Type: LINE OUT (AUDIO OUT)
  • Recommended Headphone Maximum Impedance: 501-600 Ohm
  • Dimensions (WxHxD): 165MMx95MMx29MM
Product Description
  • 1-11-21-61-31-7
IMG_5937
HTB1_ngvGVXXXXcNXFXXq6xXFXXXT

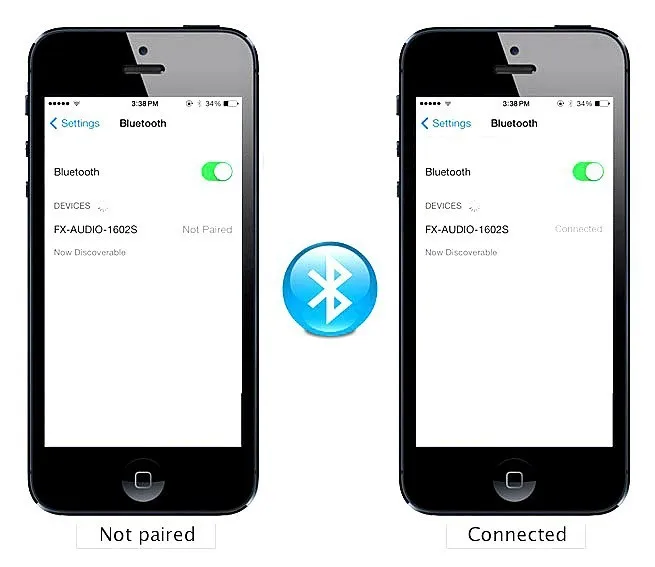

Switch on the bluetooth of FX1602S and your device, easy connected directly.

HTB1KMgxGVXXXXcoXpXXq6xXFXXX9

1-9

1-101-11

1-15





Material:       Aluminum alloy components
Total Power:160W +160W
Signal to Noise Ratio(SNR):90db

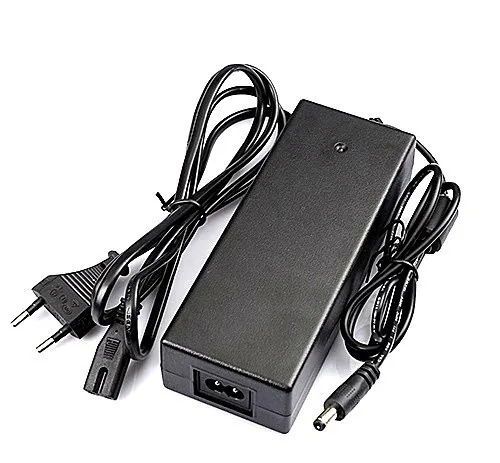

Power Supply: 24-36V
Inter face:         DC external diameter :505mm, internal diameter:2.5mm



Other Features

 With Hi-Fi TPA6120 headphone amplifier; BC-05 bluetooth Hi-Fi module; Analog signal input sensitivity: RMS 1-2V; Bluetooth transmission distance: 20m; Version: V2.1 + EDR; With SBC, MP3, AA audion decoding function; WIth A2DP, AVRCP stereo sound transmission function; Headphone amplifier: 32ohm:1.25W, 600ohm: 80MW; Amplifier output: 4ohm: 160W, 8ohm: 100W; Bluetooth instruction: switch on amplifier, push signal choose switch upward, red light flash, open cellphone or other device to search bluetooth of FX-AUDIO-1602S

Bluetooth use:


     the power amplifier , the signal selector switch toggle up
     this time to see the switch following the fast flashing red light , Bluetooth into the search state ( remember to connect the Bluetooth antenna oh )
     open the phone or other Bluetooth device into the search condition, the search to FX-AUDIO-1602S Machine Model
     click the connection after a good ability to play music , following A pple's five mobile phone connections can refer to



Performance parameters:


    analog input sensitivity RMS 1-2V
     Bluetooth transmission distance of 20 m linear distance no obstructions
     follow BLUETOOTH V2.1 + EDR Bluetooth specification
    with SBC, MP3, AAC audio decoding
     with A2DP, AVRCP high-quality stereo audio transmission
     European amp output power of 1.25W 600 32 can promote common European 80MW headphones
     the output of the amplifier 4 ohms 160W 8 can promote common European 100W speakers
     amplifier SNR 90DB
     the supply voltage 24-32V 4A above current recommendations
